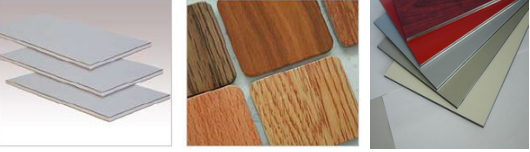

As a new decorative material, aluminum plastic composite board, introduced from Germany in the late 80s of the last century to China in the early 90s of the last century, has been rapidly affected by its economic, optional color diversity, convenient construction methods, excellent processing performance, excellent fire resistance and noble quality. It is popular.
The unique performance of the aluminum plastic composite plate itself determines its wide use: it can be used in the exterior wall of the building, the curtain wall board, the refurbishment of the old building, the interior wall and ceiling decoration, the advertisement sign, the display platform, and the purification and dust prevention.
It belongs to a new type of building decoration material. The traditional aluminum plastic plate production line has a maximum yield of 600-800KG/H and a maximum line speed of 5m/min, which can produce products with a width of 900-1560mm and an aluminum foil thickness of more than 0.18mm.

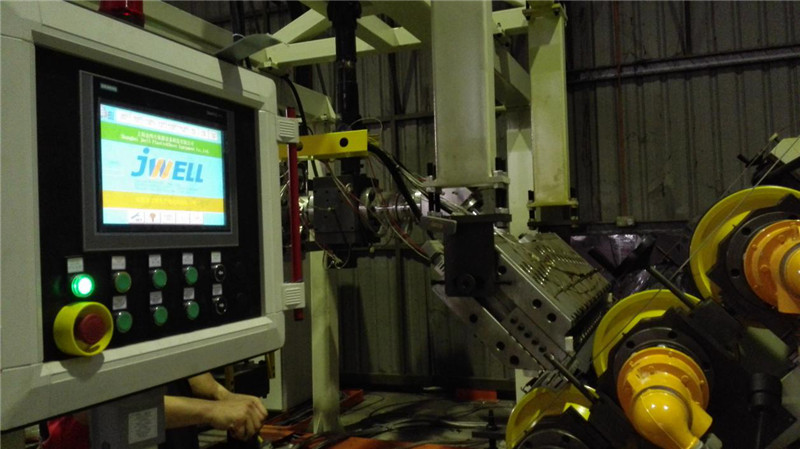

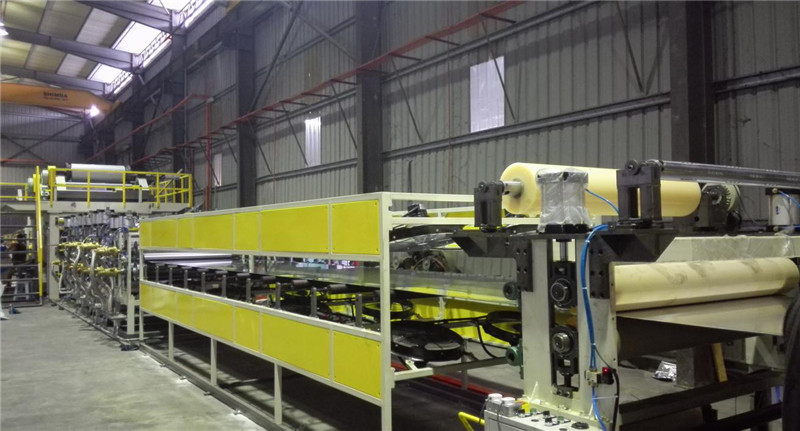

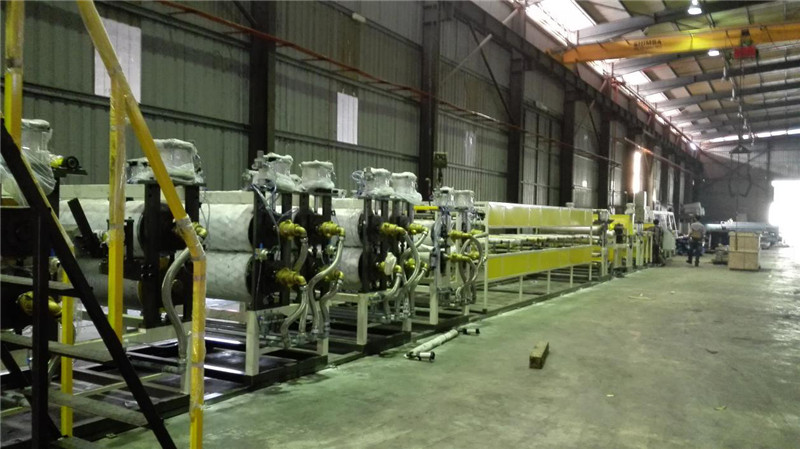

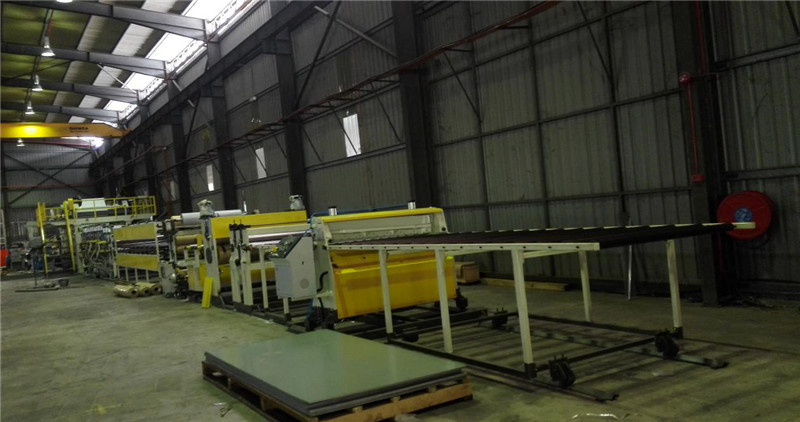

Our company's high speed aluminum plastic plate production line, using advanced and efficient base material system, can produce high filling flame retardant grade aluminum plastic plate, the highest production can reach 1800KG/H, the highest line speed up to 10m/min, the production width 900-1560mm, aluminum foil thickness more than 0.06-0.5mm products.
主要技術參數 Main technical specification
機型 Model | 產量 kg/H | 制品寬度 mm | 制品厚度 mm | 最高線速度 Max m/min |
JWE135/48(Twin screw extruder) | 1200-1800 | 900-1560 | 2-6 | 10 |
JWS170/35(Singe screw extruder) | 500-600 | 900-1220 | 1-6 | 5 |
JWS180/35(Singe screw extruder) | 700-800 | 900-1560 | 1-6 | 5 |
備注：以上規格參數如有變更，恕不另行通知。Note:The specifications are subject to change without prior notice
