HDPE geogrid production line

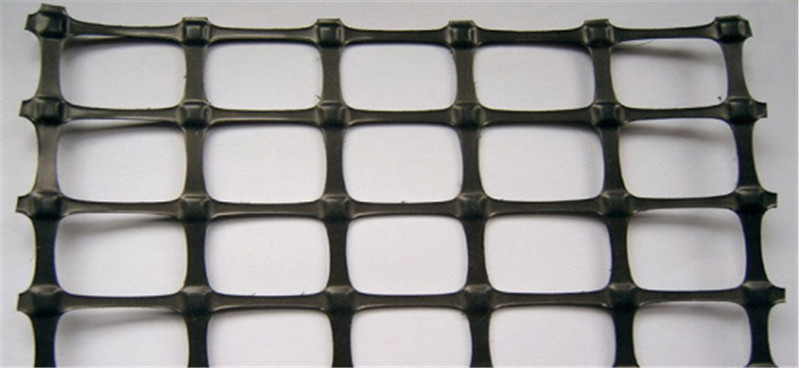

The plastic geogrid is a polymer mesh with square or rectangular shape formed by stretching. According to the difference of the tensile direction of the plastic geotextile, two kinds of uniaxial tension and biaxial tension can be made. It is perforated by extruded polymer plates (mostly polypropylene or high density polyethylene), and then directional stretching is applied under heating conditions. The uniaxial grille is drawn only along the length of the plate, while the biaxial grille continues to stretch the unidirectional grille in the direction perpendicular to its length.
The products are widely used in such fields as highway, railway, abutment, approach road, wharf, dam, slag field and so on, such as soft soil foundation reinforcement, retaining wall and pavement anti cracking engineering.
主要技術參數 Main technical specification
機型 Model | JWS120-1200 | JWS130-1800 | JWS150-2000 |
適用原料 Material | HDPE | HDPE | HDPE |
擠出機規格 Extruder specification | ?120 | ?130 | ?150 |
制品寬度 Products width | 1200mm | 1800mm | 2000mm |
制品厚度 Products thickness | 1-6mm | 1-6mm | 1-6mm |
最大擠出量 Capacity (Max.) | 400Kg/h | 550Kg/h | 750Kg/h |
備注：以上規格參數如有變更，恕不另行通知。Note:The specifications are subject to change without prior notice
